Key Advantages
四大核心能力，重新定义有限空间检测标准
Seamless cross-domain access
Compact body with long battery life, featuring a high-strength elastic anti-collision cage. Capable of navigating complex confined spaces and harsh operating conditions to cover all limited work areas.
Real-time high-precision acquisition
搭载高性能激光雷达 + 高精度 IMU 视觉定位，飞行同步生成三维点云模型，厘米级定位，支持精准尺寸量算，数据完整可追溯，三维成果支撑工程分析决策。
AI-assisted intelligent flight
Supports path memory and learning, active obstacle avoidance. Automatically returns home upon signal loss or low battery, offers one-touch autonomous return, point-to-point cruising, and multi-algorithm flight safety protection throughout the entire journey.
Complete in-house data ecosystem
Comes with dedicated processing software for an end-to-end workflow—from capture and modeling to parsing and archiving. No third-party tools needed, simplifying post-processing.
Specifications
Detailed Technical Specifications of Professional-Grade UAV Systems
Drone System Specifications
- Type
- Quadcopter
- Host Structure Dimensions
- 350×350×240 mm
- 飞行控制传感器
- IMU、气压计、ToF 传感器
- 飞行时间
- >2 0 min
- 数据传输
- Bidirectional Digital Wireless Signal Transmission
- 重量
- 2.25kg±0.05kg
- Chassis Material
- 碳纤维复合材料、航空铝合金
- Maximum Flight Altitude
- 5000 m
- 工作温度
- -10℃~50℃
LiDAR Payload Specifications
- Type
- Livox MID-360 Non-repeating Scan LiDAR
- 量程
- 40 m(@100 klx,10%反射率) 70 m(@100 klx,80%反射率)
- 测距随机误差 (1σ)
- ≤2cm (@10m); ≤3cm (@0.2m)
- Field of View (FOV)
- 水平360° ，竖直-7°~52°
- Point Cloud Output
- 200,000 points/sec
Gimbal Camera Payload Parameters
- Tilt camera view up and down
- +30°/-90°
- Camera roll
- 士90°
- payload header
- Damped vibration
- 传感器参数
- Maximum resolution: 13 MP (4224x3136); Pixel size: 1.12um x 1.12 um;
- Video streaming resolution
- 1056 x784 30fps

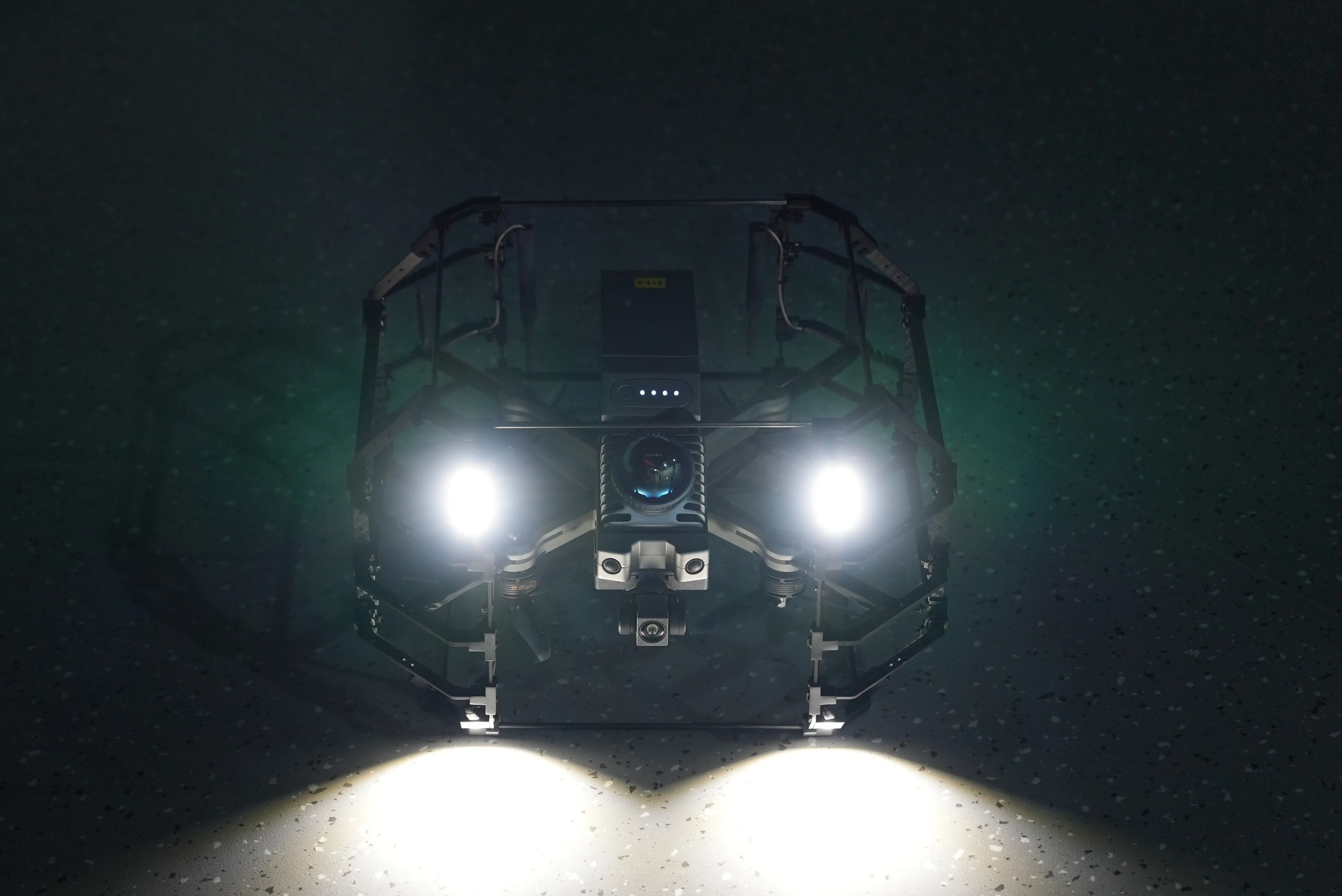

Lighting System Parameters
- 控制
- Remote control via remote
- 光亮输出
- 15W
- Type
- High-efficiency COB LEDs provide uniform front illumination.
Operational Safety and Crash Protection
- AI-Assisted Flight System
- AI 路径规划 + 主动避障
- 自动降落机制
- 低电量/失联自动返航
- 安全防护笼
- 弹性材料约束的碳纤维防护笼
- 安全预警机制
- Color tail lights display drone status in real time
Post-processing Software System
One-stop data processing solution: end-to-end coverage from collection to final output
Windows and Domestic Operating Systems
Standard formats such as .laz, .pcd, .xyz, and .csv
Need a professional testing solution?
Our technical team will provide customized services to help you efficiently solve complex detection challenges.
